Bode plot
Level 2 Category
Definition
Shows how the magnitude and phase of a system's frequency response change. It's used in electrical engineering and control theory.

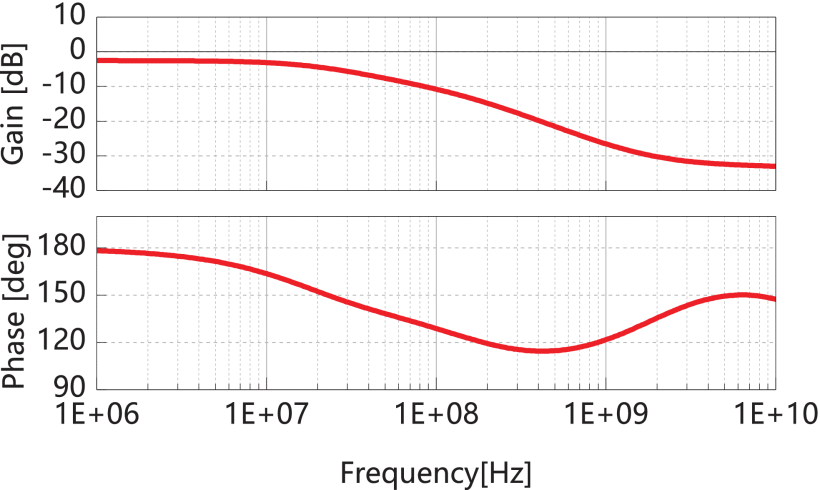

Example Image
Reproduced from IEEE Access, vol. 11, pp. 24343-24352, 2023. https://doi.org/10.1109/ACCESS.2023.3248097. Licensed under CC BY 4.0.
Writing Alternative Text
Describe the variables, the magnitude and phase curves, and any notable slopes, cutoff frequencies, or peaks.
Example Alt Text
"A Bode plot shows gain and phase response versus frequency from 1 megahertz to 10 gigahertz. The gain curve decreases steadily from about negative 5 decibels to below negative 30 decibels as frequency increases. The phase curve decreases from about 180 degrees to near 110 degrees at mid frequencies, then rises again toward 150 degrees at higher frequencies."
